Introduction: Why Light Mapping Is a Grower’s Data Problem, Not a Marketing Claim
In controlled-environment agriculture, light is not just an input—it is a measurable production variable. While many lighting discussions focus on fixture efficacy or maximum PPFD, experienced growers know that light distribution uniformity is often the limiting factor in yield consistency, quality control, and energy efficiency.
Light mapping provides the data needed to evaluate how evenly photosynthetically active radiation (PAR) is delivered across a canopy. More importantly, it exposes performance gaps that averages and spec sheets fail to show.
For commercial growers operating at scale, uniformity matters more than peak intensity.
1. What Is Light Mapping in Horticultural Applications?

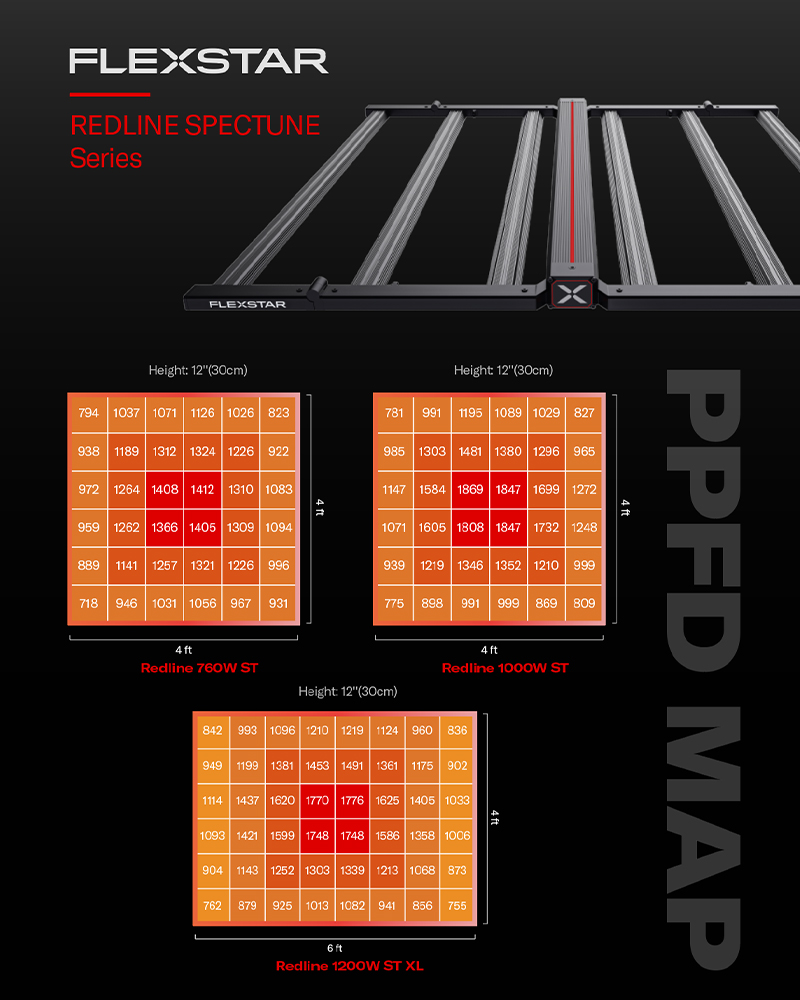

Light mapping is the systematic measurement of PPFD (µmol/m²/s) across a defined grid at canopy height. Each measurement point represents the actual light plants receive—not theoretical output.
A complete light map typically includes:
Center canopy readings
Edge and corner zones
Inter-fixture overlap areas
Variability metrics (min, max, average, and uniformity ratios)
This data allows growers to move beyond assumptions and into evidence-based lighting decisions.
2. Why Uniformity Is More Important Than High PPFD
Plants Respond to Consistency, Not Peaks
Photosynthesis follows a diminishing returns curve. Once plants reach light saturation, additional photons produce marginal gains or stress responses.
Uneven light creates:
Over-lit zones with photoinhibition risk
Under-lit zones with reduced biomass and delayed development
Uniform PPFD allows the entire canopy to operate within the optimal photosynthetic range.
Averages Hide Real Problems
Two rooms can both average 900 µmol/m²/s.
One may perform excellently.
The other may struggle.
The difference is distribution.
Without light mapping, growers unknowingly accept:
30–40% PPFD swings across the canopy
Inconsistent flower density
Uneven maturity at harvest
3. Operational Impacts of Poor Light Uniformity
1. Yield Variability Across the Room
Non-uniform light causes:
Smaller flowers in low-light zones
Excessive stretch or stress in hotspots
Reduced total sellable yield
Uniform rooms produce predictable harvest weights.
2. Quality and Potency Inconsistency
Secondary metabolite production is light-sensitive. Uneven PPFD often leads to:
Variable terpene expression
Inconsistent cannabinoid levels
Uneven flower structure and density
This complicates post-harvest sorting and pricing.
3. Increased Labor and Management Costs
Uneven canopies require:
More aggressive plant training
Selective harvesting
Additional crop steering adjustments
Uniform light reduces intervention.
4. Light Mapping in Indoor Cultivation Facilities
Indoor environments provide full lighting control, making poor uniformity entirely preventable.
Common Indoor Uniformity Issues
Improper fixture spacing
Incorrect mounting height
Incompatible optics for room geometry
Ignoring wall and edge losses
Light mapping identifies these issues early, before yield losses occur.
Single-Tier vs Multi-Tier Rooms
In multi-tier systems, small distribution errors multiply vertically. Light mapping is essential to:
Standardize tier-to-tier performance
Prevent cumulative shading effects
Ensure consistent crop steering outcomes
5. Light Mapping in Greenhouse and Hybrid Systems
Greenhouses introduce dynamic sunlight, increasing the importance of mapping.
Light mapping helps growers:
Balance natural and supplemental light
Avoid over-lighting during high DLI periods
Optimize fixture placement for seasonal sun angles
In hybrid systems, uniform supplemental light stabilizes plant responses despite changing solar input.
6. Key Metrics Growers Should Analyze in Light Maps
A professional light map should include more than averages.
Critical metrics include:
Min-to-max PPFD ratio
Uniformity percentage (min ÷ avg)
Edge-zone deviation
Hotspot identification
As a general benchmark, commercial growers aim for ≥75–80% uniformity at canopy level.
7. Fixture Design and Its Role in Uniformity
Uniformity is heavily influenced by fixture architecture.
Bar-Style Fixtures
Wider distribution
Better overlap control
Improved edge performance
Panel or Point-Source Fixtures
Higher peak intensity
Greater hotspot risk
Often require tighter spacing
Optics, beam angles, and diffusion layers further shape distribution. Light mapping verifies whether design intent matches real-world results.
8. Energy Efficiency: Uniformity Reduces Waste
Uneven light wastes energy in two ways:
Over-lighting areas already at saturation
Under-utilizing productive canopy space
By improving uniformity, growers often:
Reduce required fixture count
Lower dimming inefficiencies
Improve grams-per-watt metrics
Uniform light converts more electricity into usable biomass.
9. Light Mapping and Scalable SOPs
For multi-room or multi-site operations, light mapping supports:
Replicable room designs
Consistent crop outcomes
Faster facility expansion
Mapped layouts become part of lighting SOPs, reducing reliance on trial-and-error.
10. Common Light Mapping Mistakes to Avoid
Mapping at fixture height instead of canopy height
Ignoring corners and perimeter zones
Chasing maximum PPFD instead of consistency
Failing to re-map after layout changes
Light mapping is not a one-time task. It is a process.
11. Future Trends: Smart Mapping and Data Integration
Emerging technologies include:
-
Continuous PAR sensors
-
Automated uniformity alerts
-
AI-assisted layout optimization
As lighting systems become more tunable, distribution data will matter even more.
Conclusion: Uniformity Is the Foundation of Predictable Results
Light mapping turns lighting from a guess into a controlled variable. Uniformity improves yield consistency, quality control, and energy efficiency—all without increasing wattage.
For professional growers, the question is no longer “How strong is the light?”
It is “How evenly is it delivered?”
Uniform light grows uniform crops. And uniform crops scale.
